Tray Dryer

Please consult us for your specific capacity needs.

Product Image
Product Description :

Tray Dryer is available in a range of 12 to 200 trays capacity. Tray size of 32" x 16" x 1 1/4". The heating is accomplished by Electrical / Steam or Thermic Fluid Radiator / Oil Fired Hot Air Generator.

Key Attributes:

 » Uniform and Quick Drying.
 » Maximum Temperature up to 550°C.
 » Inside MS/Aluminum/SS316/304 or FRP Lined.
 » High efficiency Axial Flow Fan design give better performance.
 » Digital Temperature Indicator cum controller gives accurate temperature control.


Details require for quotation:

 » Capacity : Kcal/Hr.
 » Temperature : Deg. C.
 » Moisture : Inlet / Outlet.
 » Type of Heating : Electrical / Steam / Thermic Fluid / Hot Air Generator.
 » Electrical : Flame Proof / Non Flame Proof.
 » Bulk Density of Feed : Kg/M3.


Applications:

INDUSTRIES
APPLICATIONS
DYES, CHEMICALS AND INTERMEDIATES DRYING OF WEL CAKE, SOLID LIQUID WASTE INCINERATOR, LABORATORY OVEN AND FURNACES
PLASTICS GRANULES PREHEATING FOR MOISTURE REMOVAL.
ELECTRICAL INDUSTRY VARNISH BACKING IN TRANSFORMERS, MOTORS, FANS, STAMPING ETC, RESIN CURING. POWDER COATING AND PAINT BACKING OF CONTROL PANEL.
FOUNDRY CORE DRYING.
CERAMICS BISCUTTING AND GLAZING OF FLOOR AND WALL TILES, SANITARY  WARES, CUP AND SAUCERS, BONE CHINA CROCKERY, AND ALLIED CERAMIC ACCESSORIES.
SINTERING OF SOFT AND HARD FERRITE, TECHNICAL CERAMICS, ORDERITE, MULITE, AND OTHER CERAMICS.
PHARMACEUTICALS AND BULK DRUGS DRY HEAT STERILIZER, DRYING OF WET CAKE AND GRANULES.
METAL FINISHING POWER COATING AND LIQUID PAID BACKING OVEN.
ALUMINUM INDUSTRY AGEING OVER FOR CONDUCTORS AND EXTRUDED SECTIONS POWER COATING OVEN AND PAINT BACKING OVER FOR EXTRUDED SECTION.
TEFLON TEFLON COATING AND SINTERING.
AUTOMOBILE INDUSTRY RADIATOR CORE BACKING OVEN, POWER COATING AND PAID BACKING OF AUTOMOBILE PARTS, SOLDERING AND TIN MELTING POT.
HOSPITALS AND LABORATORY INCINERATORS FOR INCINERATING BIO MEDICAL WASTE GENERATED IN HOSPITALS PATHOLOGY LABORATORY, BLOOD BANK ETC..

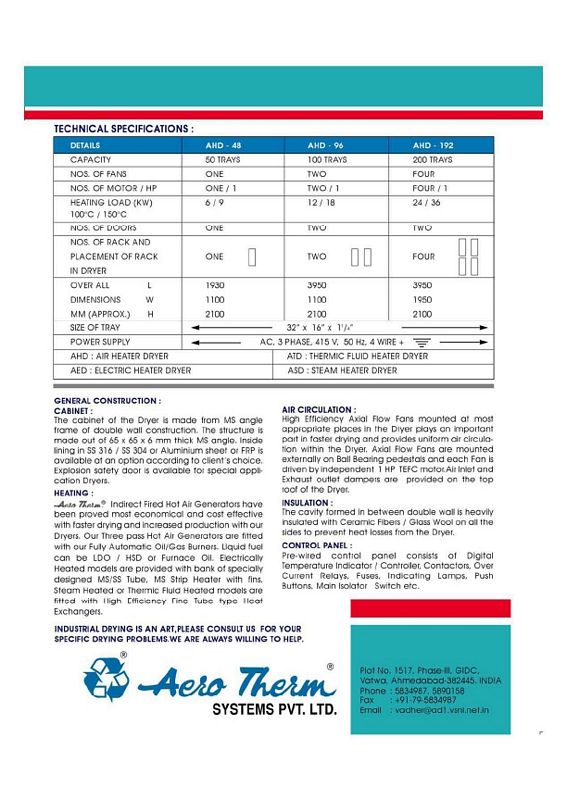

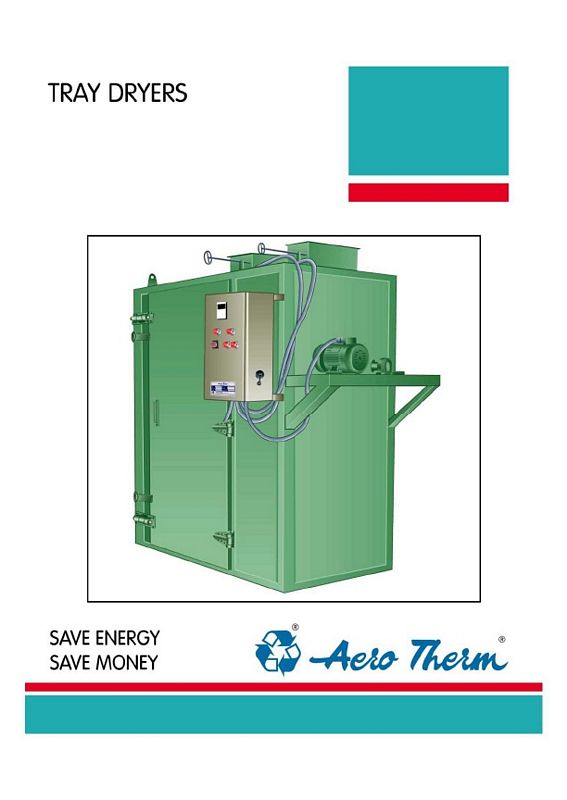

 Download Product Catalogue PDF or view Images
Download PDF catalogue file     AeroTherm Systems Tray Dryers    AeroTherm Systems Tray Dryers
